NAME�� LATERAL TEE
MATERIAL��A234-WPB.A420-WPL6.A234-WP5,A234-WP9,A234-WP11,A234-WP12,A234-WP91. A403-WP304.A403-WP304L.A403-WP316.A403-WP316L.A860-WPHY42,A860-WPHY46,A860-WPHY52,A860-WPHY60,A860-WPHY65,A860-WPHY70,A860-WPHY80,API 5L-A25,API 5L-A,API 5L-B,API 5L-X42,API 5L-X46,API 5L-X52,API 5L-X56,API 5L-X60,API 5L-X65,API 5L-X70,API 5L-X80
SIZE��1/2"-48",DN15-DN1200
PRESSURE��Sch5-Sch160,STD,XS,XXS,PN4.0,PN8.0,PN10.0,PN16.0
STANDARDS�� ISO. ANSI. JIS. DIN GB/T12459,GB/T13401,ASME B16.9,SH3408 SH3409,HG/T21635,HG/T21631,SY/T0501,MSS SP-97
USE�� Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc..

PRODUCT DRAWING PRODUCT CONSTRUCTION

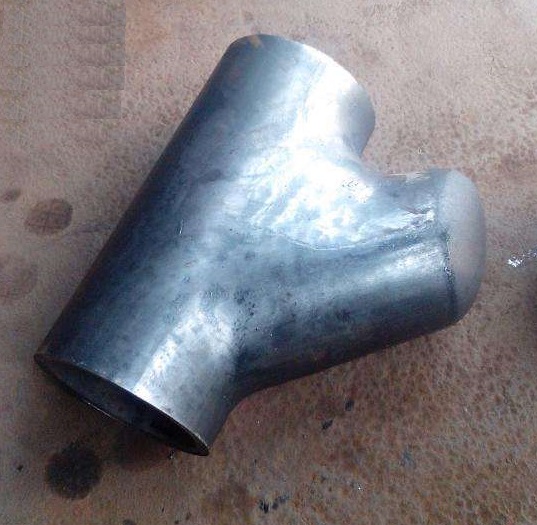

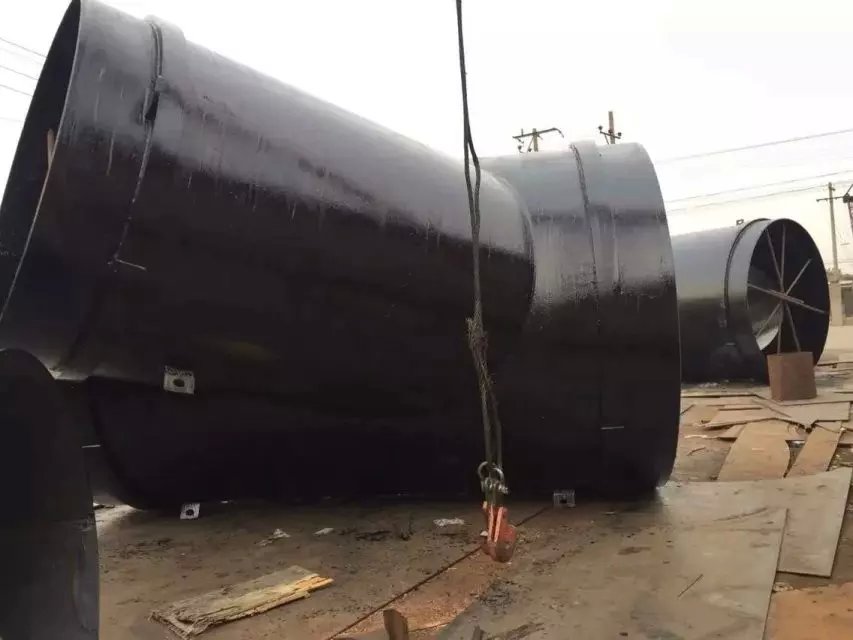

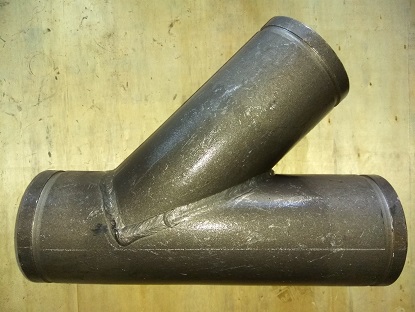

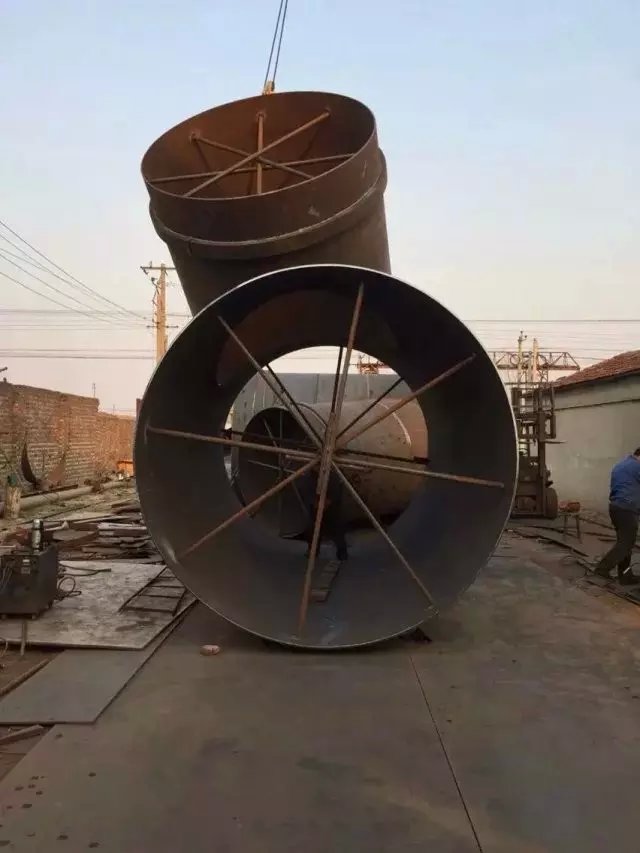

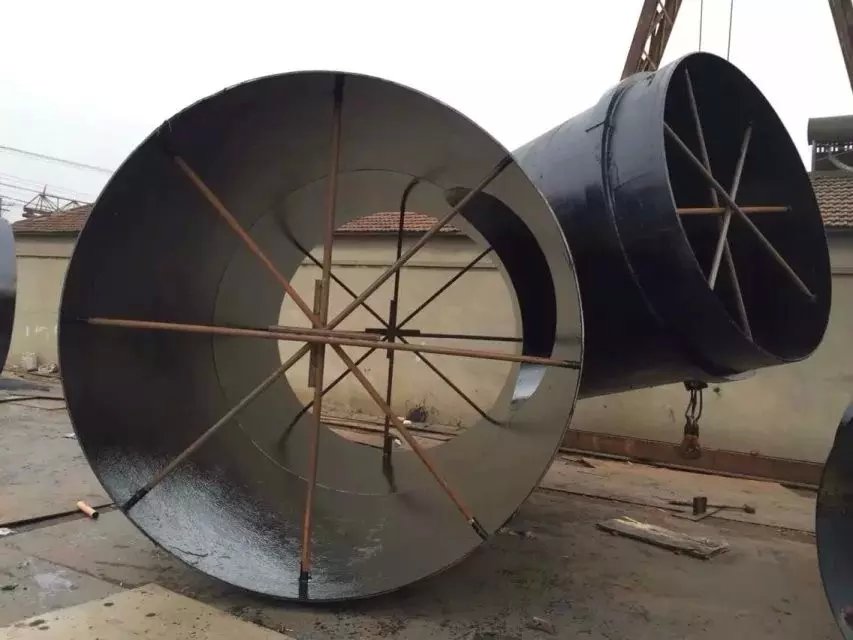

WELDING LATERAL TEE

WELDING LATERAL TEE

WELDING LATERAL TEE

WELDING LATERAL TEE

WELDING LATERAL TEE

WELDING LATERAL TEE

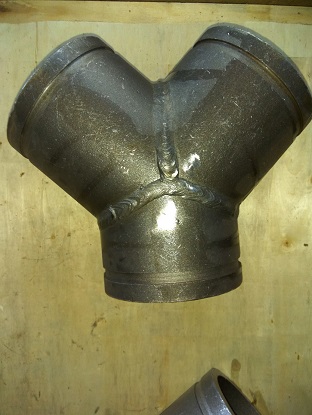

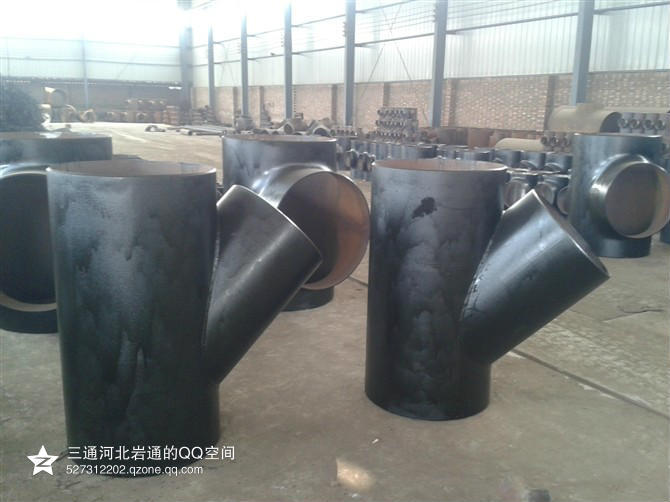

WELDING Y TYPE LATERAL TEE WITH GROOVED

WELDING Y TYPE LATERAL TEE WITH GROOVED

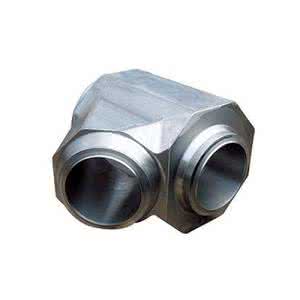

FORGED LATERAL TEE

FORGED LATERAL TEE

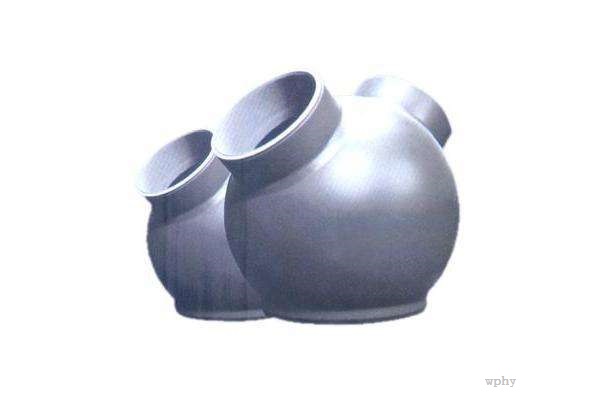

SEAMLESS LATERAL TEE

SEAMLESS LATERAL TEE

��

WELDING LATERAL TEE SIZE

��
WELDING LATERALS

SIZE DN OD ��
STANDARD WEIGHT
��
EXTRA STRONG

A B APPROX
WEIGHT A B APPROX
WEIGHT

1" 25 33 146 45 0.83 165 51 1.24

1-1/4" 32 42 159 45 1.17 184 57 1.85

1-1/2" 40 48 178 51 1.55 216 64 2.41

2" 50 60 203 64 2.23 229 64 3.51

2-1/2" 65 73 241 64 4.28 267 64 6.17

3" 80 89 245 76 5.4 279 76 8.6

3-1/2" 90 102 292 76 8 318 76 12

4" 100 114 305 76 9 343 76 16

5" 125 140 343 89 13 381 89 23

6" 150 168 368 89 19 445 102 37

8" 200 219 445 114 35 521 127 61

10" 250 273 521 127 59 610 140 90

12" 300 325 622 140 86 699 152 126

14" 350 355 686 152 101 787 165 155

16" 400 406 762 165 131 876 191 194

18" 450 457 813 178 153 953 203 248

20" 500 508 889 203 185 1029 216 287

24" 600 610 1029 229 249 1207 254 406

26" 650 660 1321 198 ��

28" 700 711 1422 213 ��

30" 750 762 1524 229 ��

32" 800 813 1626 244 ��

34" 850 864 1727 259 ��

36" 900 914 1829 274 ��

38" 950 965 1930 290 ��

40" 1000 1016 2032 305 ��

42" 1050 1067 2134 320 ��

44" 1100 1118 2235 335 ��

46" 1150 1168 2337 351 ��

48" 1200 1219 2438 366 ��

��

FORGED LATERAL TEE SIZE

NEED BY YOURSELF ,NEED DRAWING

BELOW 4" CAN USED MY COMPANY'S STANDARD

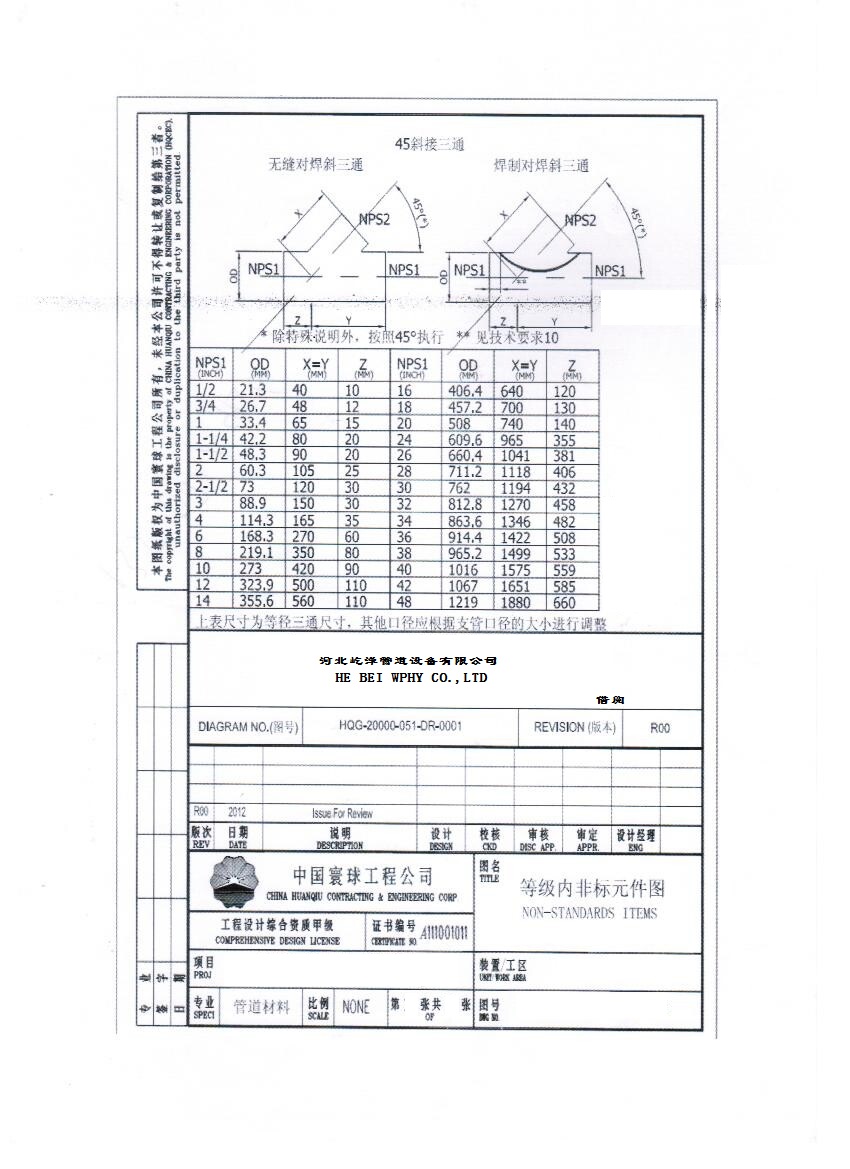

SEAMLESS LATERAL TEE SIZE

BUTT WELDED LATERAL TEE
